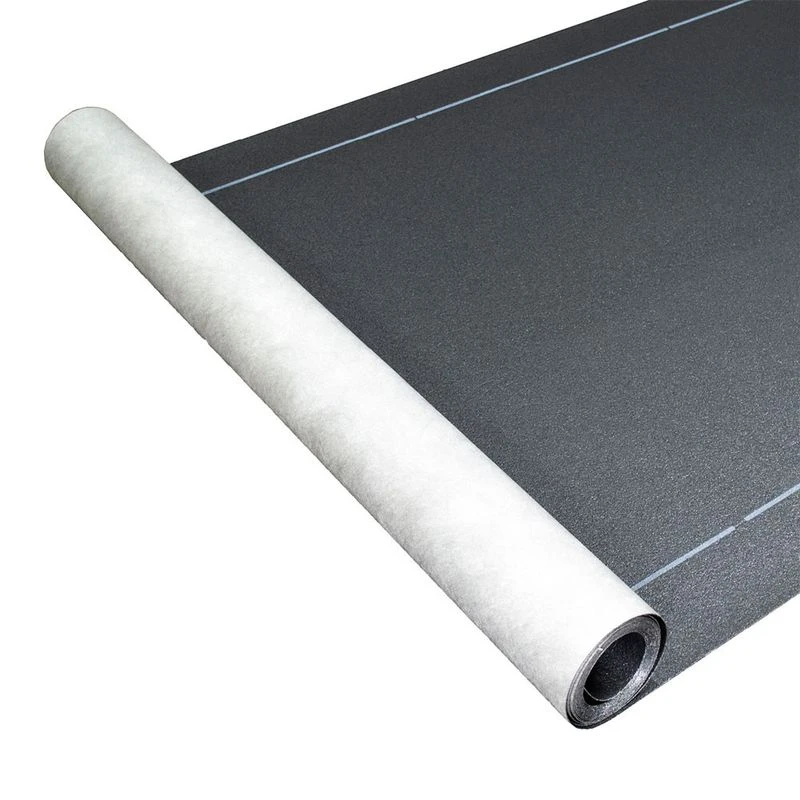

A Proctor Group Fireshield Permeable Walling Underlay – 20m X 1.1m Roll

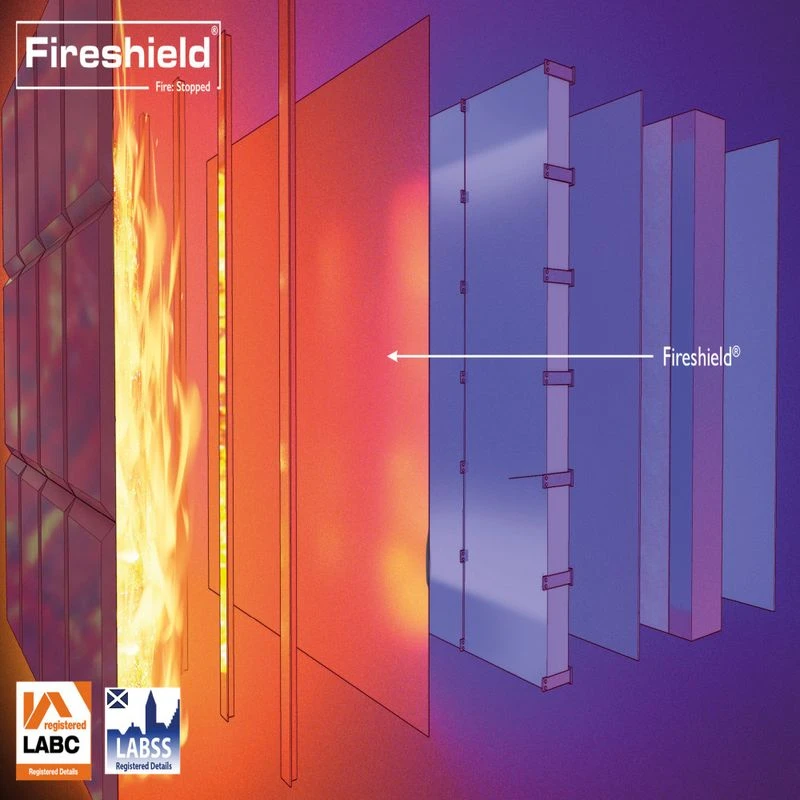

Featuring a surface coated with intumescent material, this Fireshield Permeable Walling Underlay is a suitable choice for various walling applications, including those found in multi-story buildings. Its intumescent coating safeguards the underlying structure by minimising the risk of fire propagation and significantly reducing the formation of droplets and smoke.

During installation, this underlay should be affixed to the substrate using mechanical fixings, following the same procedure as standard breather membranes. You should ensure it is fixed directly to the substrate while staggering the vertical laps. It is crucial to secure this Fireshield with appropriate fixings for the substrate considering their fire performance.

Features & Benefits: A Proctor Group Fireshield Permeable Walling Underlay – 20m x 1.1m Roll

• Suitable for applications over 18m high (11m in Scotland)
• Vapour permeable walling underlay for use directly onto sheathing or insulation
• Unique intumescent coating protects the substrate
• Water Vapour Transmission: Sd=0.08m
• 3 months of UV resistance
• 20m length x 1100mm width x 1.2mm thickness

Standards & Certification

• Certifications: BBA, LABC and LABSS
• Reaction to Fire: EN13501-1 B,s1,d0
