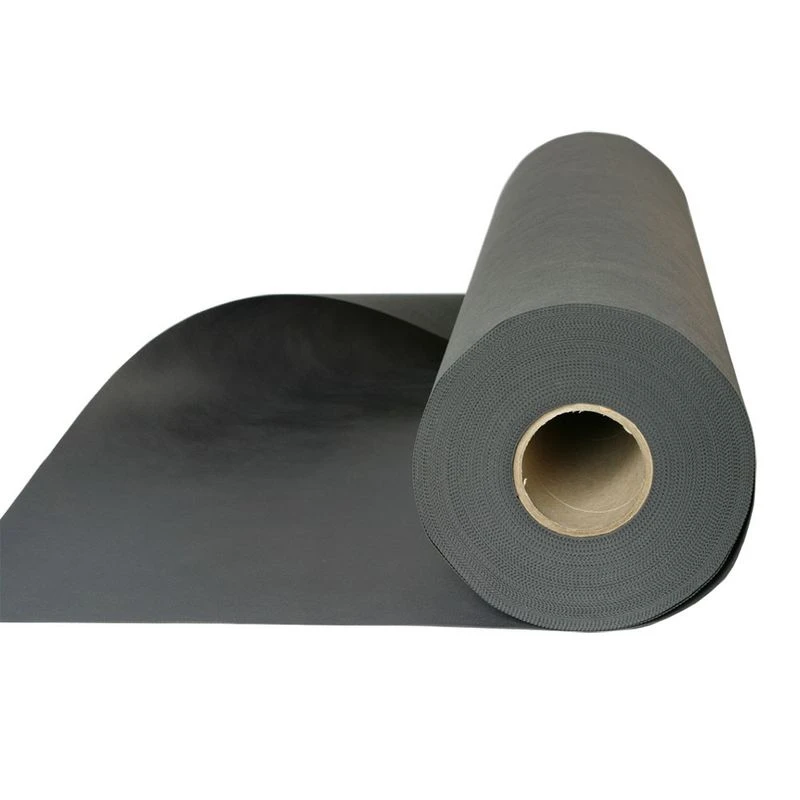

A Proctor Group Frameshield 100 Condensation Control Breather Grey Membrane – 100m X 2.7m Roll

Suitable for use in light steel frame applications and timber frame wall construction, this Frameshield 100 breather membrane protects against wind-driven dust, snow and rain. Once installed, it allows the controlled escape of vapour from within the timber frame due to its high vapour permeability whilst preventing the entry of moisture and rain.

Supplied in roll form, this Frameshield 100 membrane should be secured to frames with austenitic stainless steel nails or staples at no more than 500mm centres. You can ensure its reliability by overlapping upper layers over lower layers and staggering vertical joints. Once fixed to the wall, the Frameshield 100 membrane should be covered within three months.

Features & Benefits: A Proctor Group Frameshield 100 Condensation Control Breather Grey Membrane – 100m x 2.7m Roll

• 270m² roll size
• Grey finish
• 0.006m water vapour resistance Sd
• Spunbonded, polypropylene material
• Applied in the factory during manufacture or on site
• Restricts ingress of moisture and rain
• High water permeability
• Effective protection during construction

Standards & Certification

• Conforms to BS401
