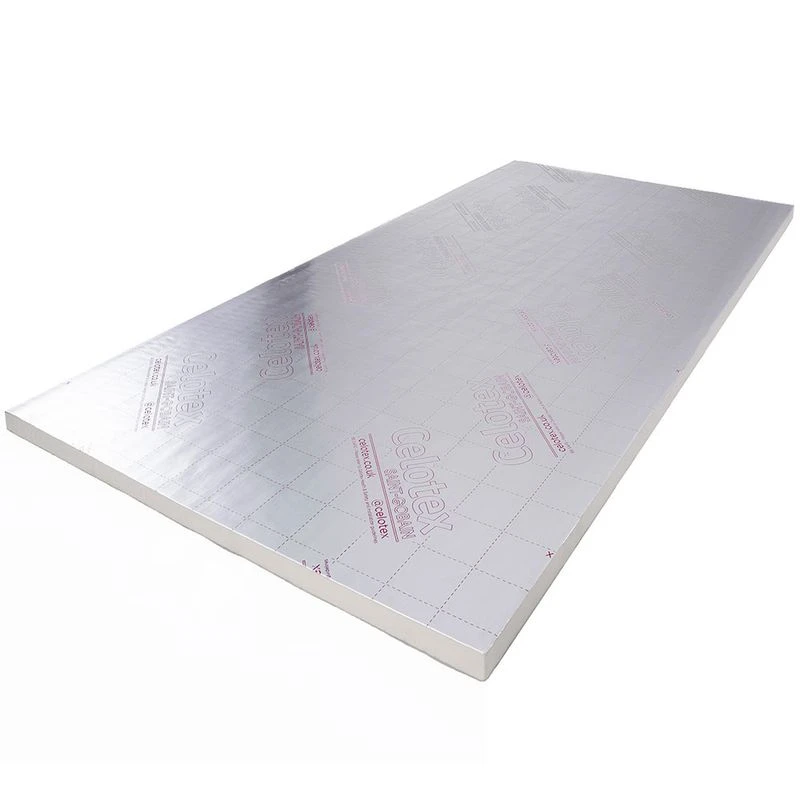

Celotex GA4060 General Purpose PIR Insulation Board – 2400 X 1200 X 60mm

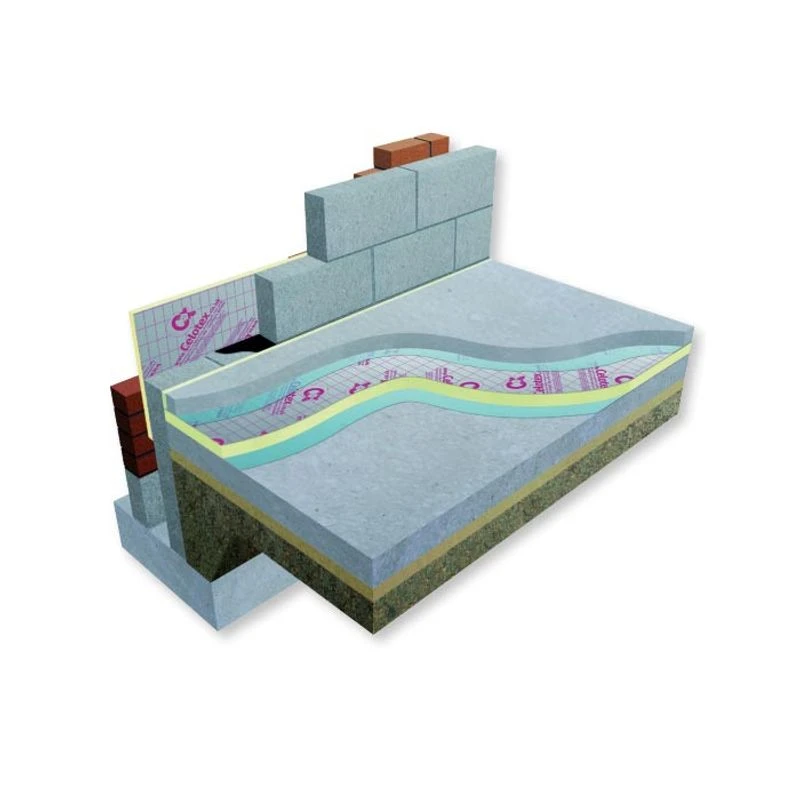

Suitable for use in various applications, Celotex GA4060 is a multi-purpose insulation board that is compatible with flat roofs, pitched roofs, solid masonry walls and floors as well as timber framed and steel framed systems. It’s equipped with low emissivity foil facing and manufactured from rigid polyisocyanurate (PIR), making it easy to cut and shape.

With a thermal conductivity of 0.022W/mK, this insulation board has excellent thermal performance and is able to hit the target U-value with reduced thickness. The low emissivity foil facing also works to boost thermal performance in sealed cavity air spaces and elevates the potential U-value.

Features & Benefits: Celotex GA4060 General Purpose PIR Insulation Board – 2400 X 1200 X 60mm

• High-quality PIR insulation board
• Outstanding thermal performance and reduced thickness
• Low emissivity foil facings for improved thermal insulation performance in cavity air spaces
• Suitable for floor, roof and wall applications
• Lightweight, quick and easy to install
• 2400mm length x 1200mm width x 60mm thickness
• Coverage of 2.88m²
• R-Value of 2.70m²K/W
• Maximum weight of 2.26kg/m2
• Compressive strength (kPa): CS(10Y)140

The GA4060 is certified by the BBA (British Board of Agrément) as fit for use in defined roof, wall and floor applications when installed, used and maintained as set out in the certificate, so you know it’s designed to the highest standards. In addition, this valuable asset has a BRE (Building Research Establishment) Green Guide Rating of A, which can help your environmental performance in your BREEAM (Building Research Establishment Environmental Assessment Method) assessments.

Standards & Certification

• Thermal conductivity: 0.022W/m according to BS EN 13165 for factory made rigid polyurethane foam (PU) product.
• Spread of flame: Euroclass F Reaction to Fire classification, according to BS EN 13501-1. Products with this level of classification are not provided with a rating for smoke emission.
• Certification: BBA certified
• BRE Green Guide Rating: A for sustainability
