CircofloPro Water Underfloor Heating Kit 200m2

This water-piped underfloor heating kit from CircofloPro offers an easy-to-install, cost-effective and straightforward underfloor heating solution. This system has equally spaced pipes at 133mm intervals, ensuring that heat is distributed evenly throughout any room where it is installed.

Furthermore, the smaller manifolds provide greater installation flexibility, allowing them to be concealed inside walls or cupboards. Not only is this CircofloPro system energy-efficient, running off your boiler at a lower flow temperature, but it will also save you money on energy expenses. You can manage the whole system with the CircofloPro underfloor heating thermostat which can be situated in your hallway, or you can control room temperature individually by positioning thermostats throughout your home in various rooms.

Features & Benefits: CircofloPro Water Underfloor Heating Kit 200m2

• Cheaper to run, minimising energy costs
• Space saving
• Straightforward to install and control
• Safer to use due to lower surface temperatures
• Independently tested
• Pipes laid at 133mm centres meaning 12mm pipe can be utilised

This underfloor heating system delivers a warm and comfortable living environment without taking up valuable space for radiators, leaving more room for your appliances and furnishings. It works with an array of flooring materials, such as carpet, slate and laminate, however, you should make sure that your specific flooring is compatible.

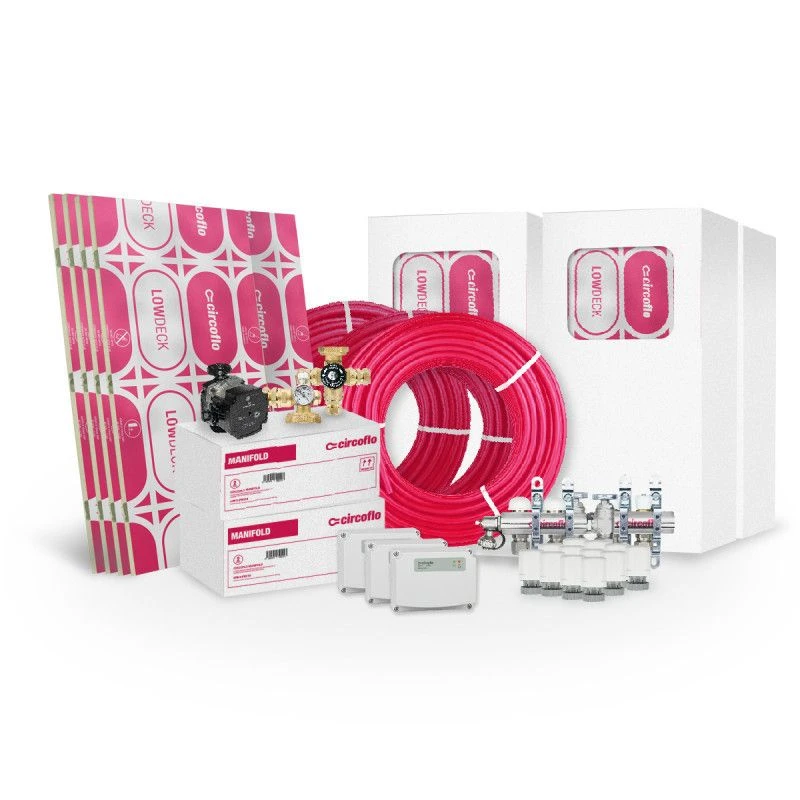

Circoflo Kit Contents

• 1 x mixing unit including pump
• 5 x 4 zone 230V hard-wired wiring centre
• 5 x 4 port manifold with pipe connectors
• 20 x 230V actuator valve for manifold
• 20 x 90m coil of 12mm x 1.4mm PERT UFH pipe

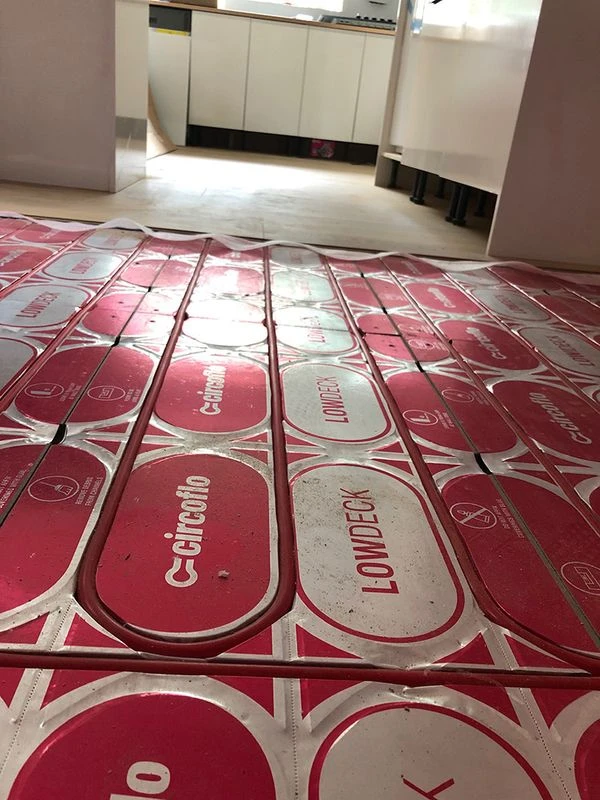

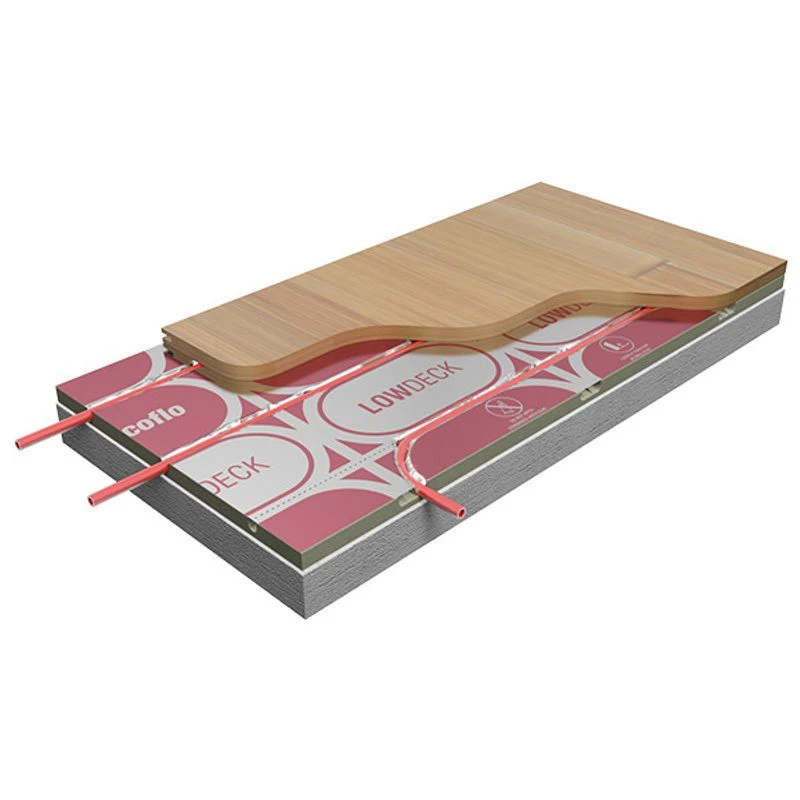

• For retrofit wooden floors you will also get:
• 132 x LowDeck Boards

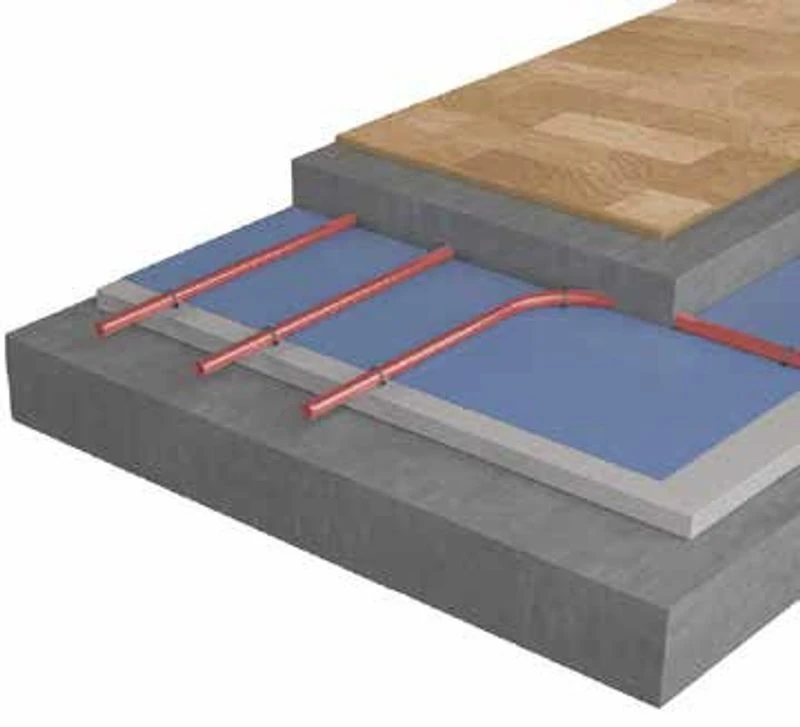

• For screed staple floors you will also get Circoflo:
• 8 x expansion foam with gaiter – 25mm x 145mm x 11mm
• 10 x 300no. 40mm Staple to fix pipe to insulation (minimum 30mm)

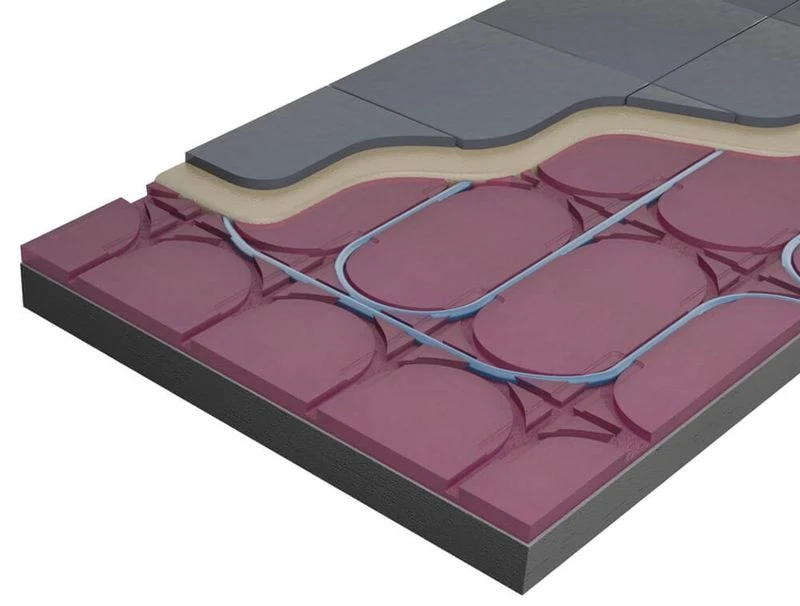

• For retrofit tiled floors you will also get Circoflo TileDeck:
• 27 x Primer Pack (for up to 25m²) 5L Prime & grip and 1L Primeplus
• 42 x Adhesive Pack (for up to 5m²) 20kg bag Ultimate Adhesive
• 83 x Low build up UFH panels for tiles and vinyl – 8no. 18mm x 800mm x 400mm
• 119 x Levelling Pack (for up to 1.85m²) 20kg bag Levelflex
• For retrofit vinyl floors you will also get Circoflo TileDeck:
• 27 x Primer Pack (for up to 25m²) 5L Prime & grip and 1L Primeplus
• 42 x Adhesive Pack (for up to 5m²) 20kg bag Ultimate Adhesive
• 83 x Low build up UFH panels for vinyl and tiles – 8no. 18mm x 800mm x 400mm
• 190 x Levelling Pack (for up to 1.16m²) 20kg bag Levelflex

Please note:

• Circoflo kits come in panels with 800mm x 400mm dimensions and are supplied with enough coverage for the kit’s m².
