CircofloPro Water Underfloor Heating Kit 90m2

Perfect for installation behind walls and in cupboards to maximise discretion, this CircofloPro water underfloor heating system utilises smaller manifolds. Installation is relatively fast with ultra-flexible 12mm pipes that are spaced at 133mm centres. In turn, warm-up consumes less time and heat is able to rise consistently throughout rooms.

Cost-saving and energy-efficient, this CircofloPro underfloor heating system runs off the boiler and assists in reducing the price of energy bills. Not only this, but it also employs a lower flow temperature and is less expensive to run than conventional underfloor heating systems.

Features & Benefits: CircofloPro Water Underfloor Heating Kit 90m2

• Saves space without bulky radiators
• More affordable to run
• Easy to install and control
• Safety is increased due to lower surface temperatures
• Pipes laid at 133mm centres meaning 12mm pipe can be used
• Independently tested
• Smaller manifolds and more flexibility

CircofloPro underfloor heating thermostats are best situated in a hallway to control the entire system, or in multiple rooms to change temperatures where necessary.

To save space for your furniture and appliances, underfloor heating systems reduce the need for radiators while keeping your home warm and snug. This popular option of heating can be used alongside slate, carpet, laminate and various other floor materials. However, your flooring should be checked for compatibility.

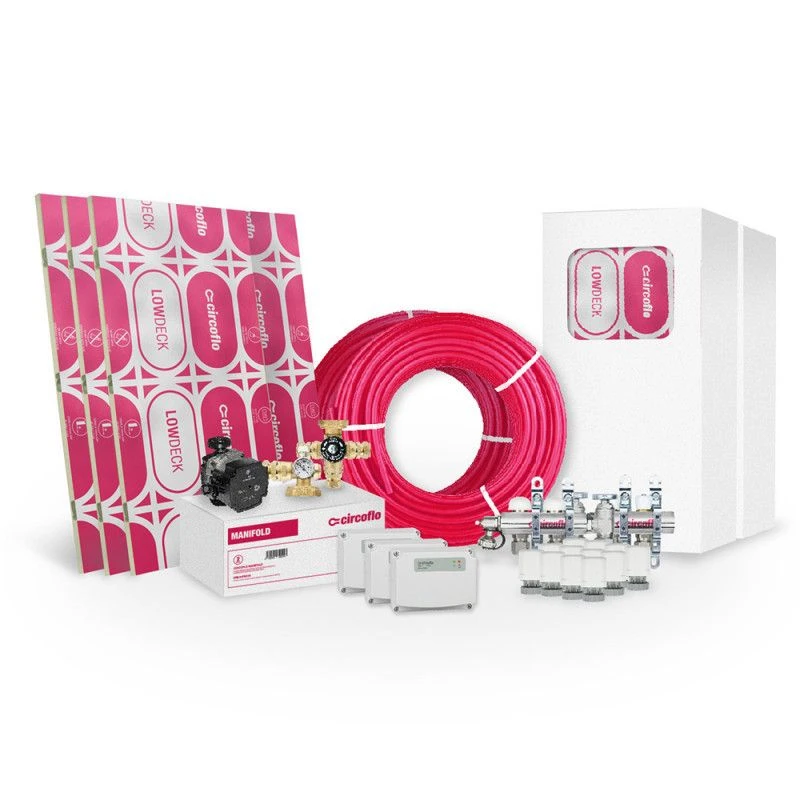

Circoflo Kit Contents

• 1 x Circoflo mixing unit including pump
• 3 x Circoflo 3 port manifold with pipe connectors
• 3 x Circoflo 4 zone 230V hard-wired wiring centre
• 9 x Circoflo 90m coil of 12mm x 1.4mm PERT UFH pipe
• 9 x Circoflo 230V actuator valve for manifold

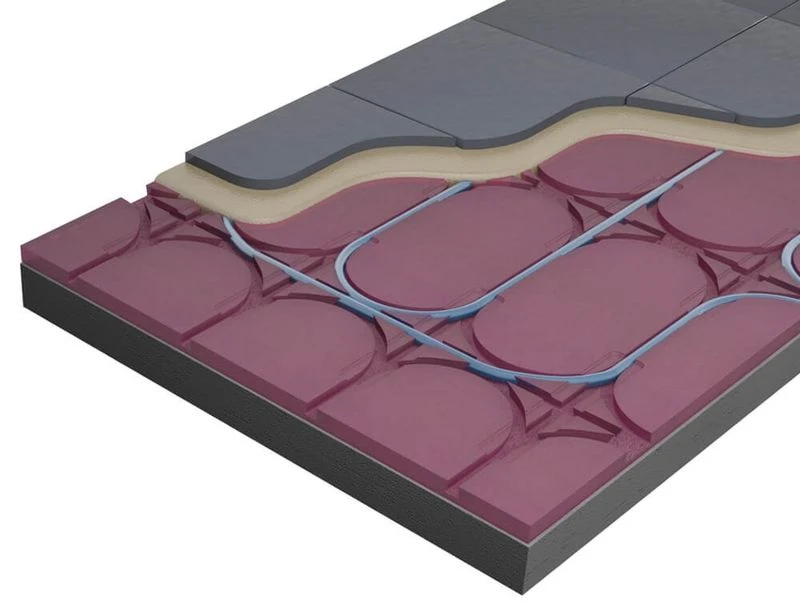

• For retrofit tiled floors you will also get:
• 12 x Circoflo TileDeck Primer Pack (for up to 25m²) – 5L Prime & grip & 1L Primeplus
• 37 x Circoflo TileDeck Low build up UFH panels for tiles and vinyl – 8no. 18mm x 800mm x 400mm
• 54 x Circoflo TileDeck Levelling Pack (for up to 1.85m² with tiles) 20kg bag Levelflex
• 19 x Circoflo TileDeck Adhesive Pack (for up to 5m²) – 20kg bag Ultimate Adhesive

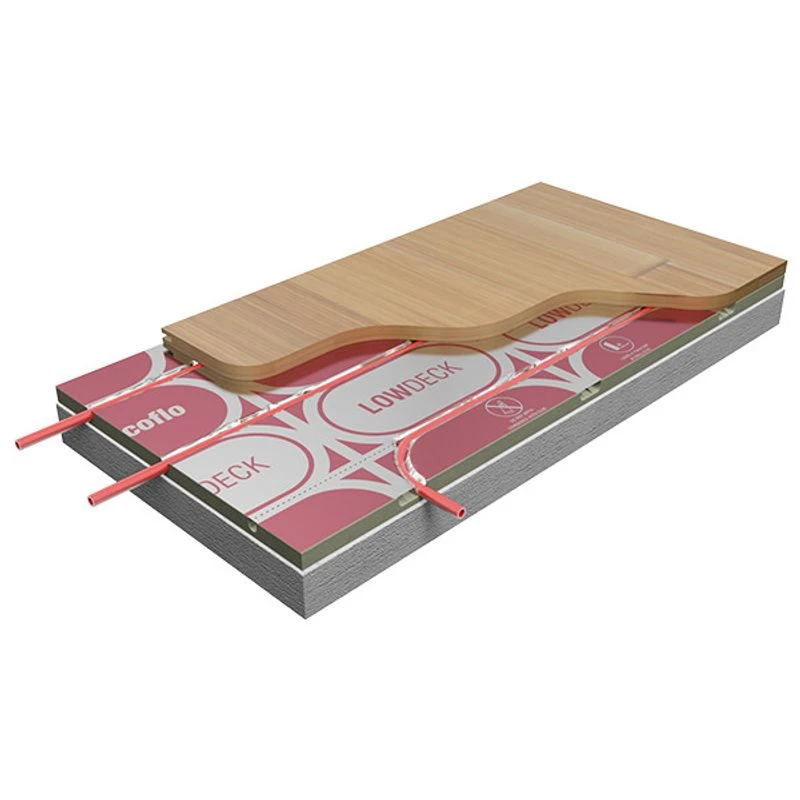

• For retrofit wooden floors you will also get:

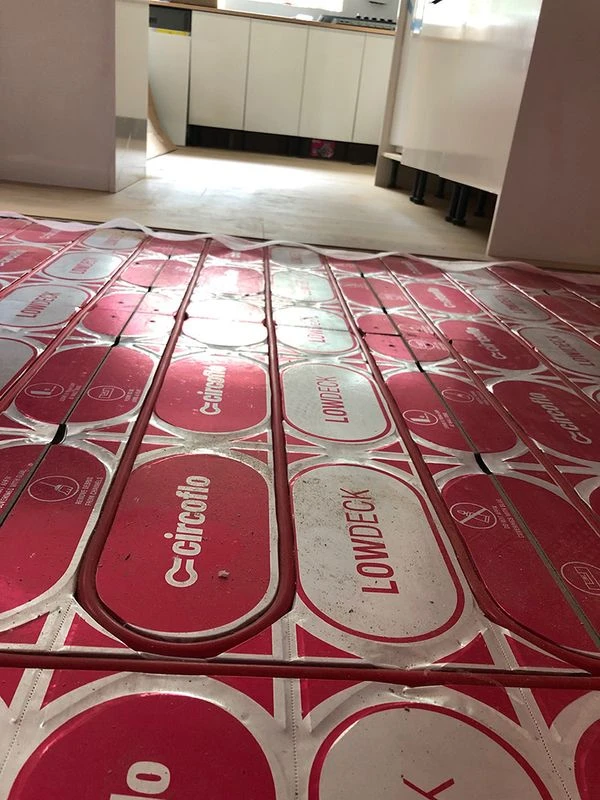

• 60 x LowDeck Boards
• For retrofit vinyl floors you will also get:
• 86 x Circoflo TileDeck Levelling Pack (for up to 1.16m² with Vinyl) 20kg bag Levelflex
• 37 x Circoflo TileDeck Low build up UFH panels for tiles and vinyl – 8no. 18mm x 800mm x 400mm
• 19 x Circoflo TileDeck Adhesive Pack (for up to 5m²) – 20kg bag Ultimate Adhesive
• 12 x Circoflo TileDeck Primer Pack (for up to 25m²) – 5L Prime & grip & 1L Primeplus

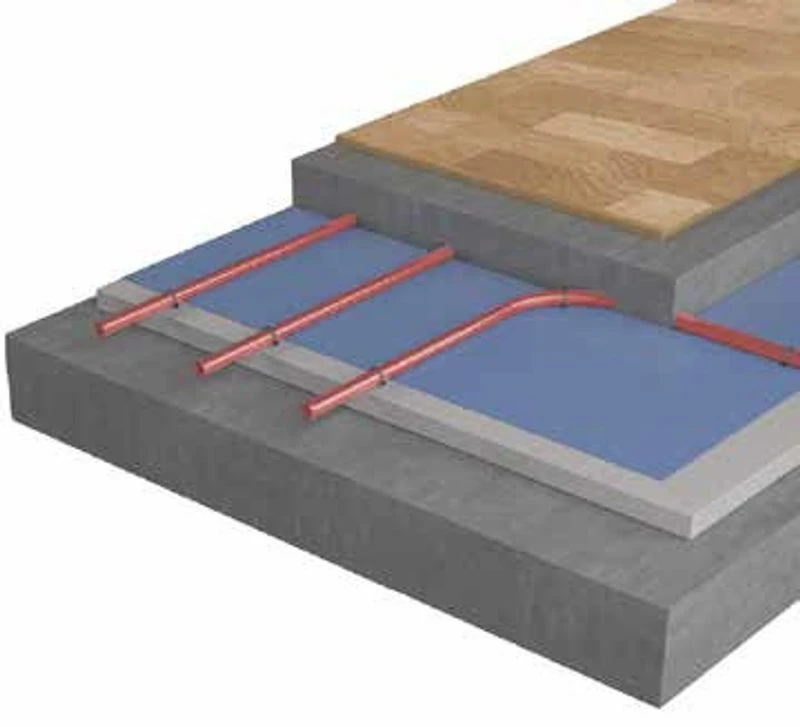

• For screed staple floors you will also get:
• 4 x Circoflo expansion foam with gaiter – 25m x 145mm x 11mm
• 5 x Circoflo 300no. 40mm Staples to fix pipe to insulation (minimum 30mm)

Please note:

• Circoflo kits are supplied in panels with sizes of 800mm x 400mm. The appropriate number of panels is supplied to meet the m² coverage of the kit.
