Insulated Plasterboard By Kingspan K118 Kooltherm 2400 X 1200 X 52.5mm – Pack Of 15 Sheets

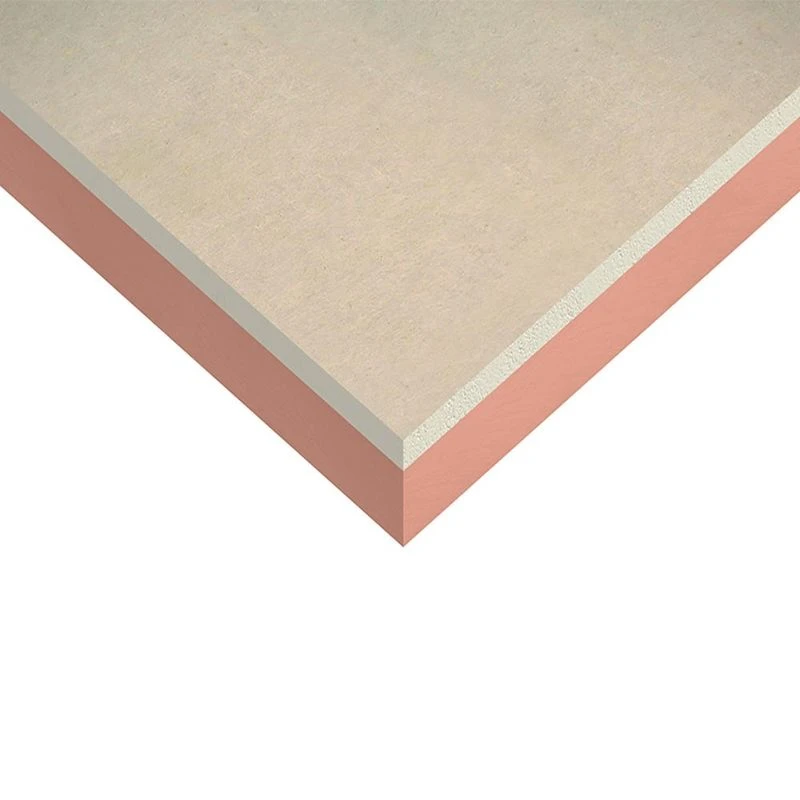

These Kooltherm K118 Insulated Plasterboards from Kingspan are a high-quality lower lambda internal wall insulation solution. Their front surface comprises a 12.5mm thick plasterboard while the reverse surface has a composite foil-based facing.

Suitable for dry-lining that is either plaster dab/adhesive bonded or mechanically fixed, this Kingspan Kooltherm Insulation has a fibre-free core that is manufactured from a premium performance rigid thermoset modified resin insulant, with a blowing agent that has low Global Warming Potential (GWP) and zero Ozone Depletion Potential (ODP).

Features & Benefits: Insulated Plasterboard by Kingspan K118 Kooltherm 2400 x 1200 x 52.5mm – Pack of 15 Sheets

• Composite foil reverse facing
• Suitable for plaster dab/adhesive bonded or mechanically fixed dry-lining
• Premium performance fibre-free rigid thermoset phenolic core
• Low GWP and zero ODP
• For use on solid external walls, under rafters and internal to timber frames
• 0.018W/mK thermal conductivity
• 2.4m length x 1.2m width x 40mm thickness
• 2.88m² board coverage
• 12.5mm thick plasterboard
• 52.5mm total thickness

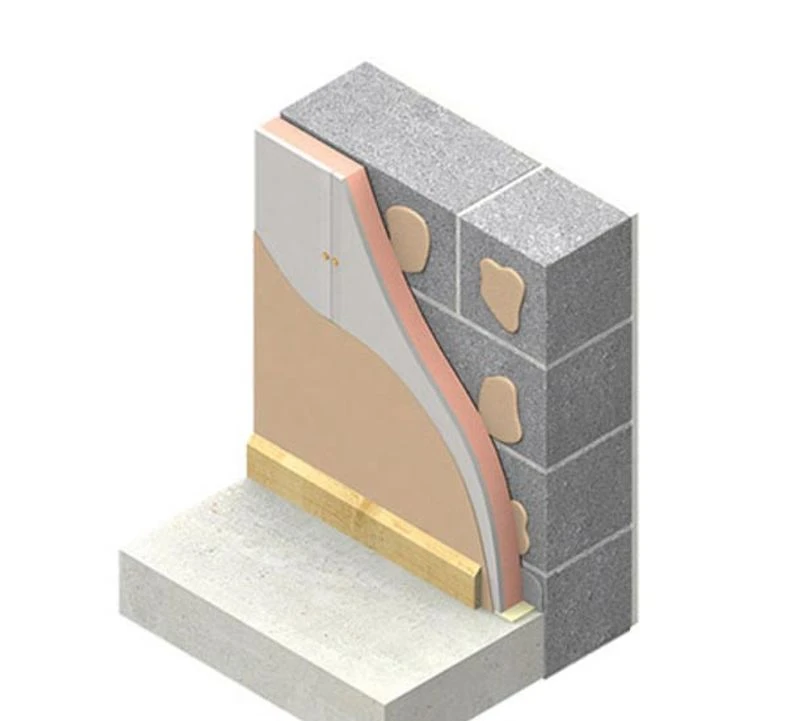

When installing these Kooltherm Insulated Plasterboards, you should secure them with drywall screws. In solid wall applications, they can be affixed to either metal studs or timber battens with a maximum spacing of 600mm centres. To provide additional support, noggins should be utilised to reinforce any boards edges in roof and wall applications. If you’re worried about dampness in walls, you should attach strips of DPC behind the battens. It is also essential to ensure that there’s a 25mm penetration for fixings. Additionally, the fixings must be situated no less than 10mm away from the board edges.

Made to the highest standards, this Kingspan Kooltherm Insulation has been certified under a management system and produced at Kingspan Insulation’s Castleblayney manufacturing facility which is covered by NSAI Agrément.

Standards & Certification

• NSAI Agrément: Certificate 09/0329
• Quality management systems. Requirements: Certified to BS/I.S. EN ISO 9001: 2008
• Environmental Management Systems. Requirements: Certified to BS/I.S. EN ISO 14001: 2004
• Health and Safety Management Systems. Requirements: Certified to BS/I.S. OHSAS 18001: 2007
