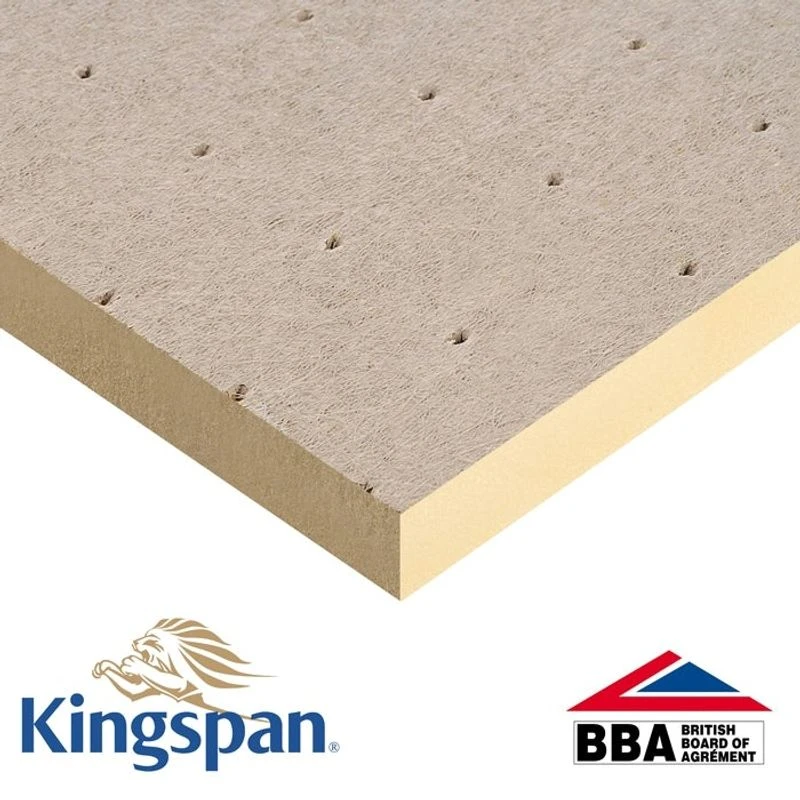

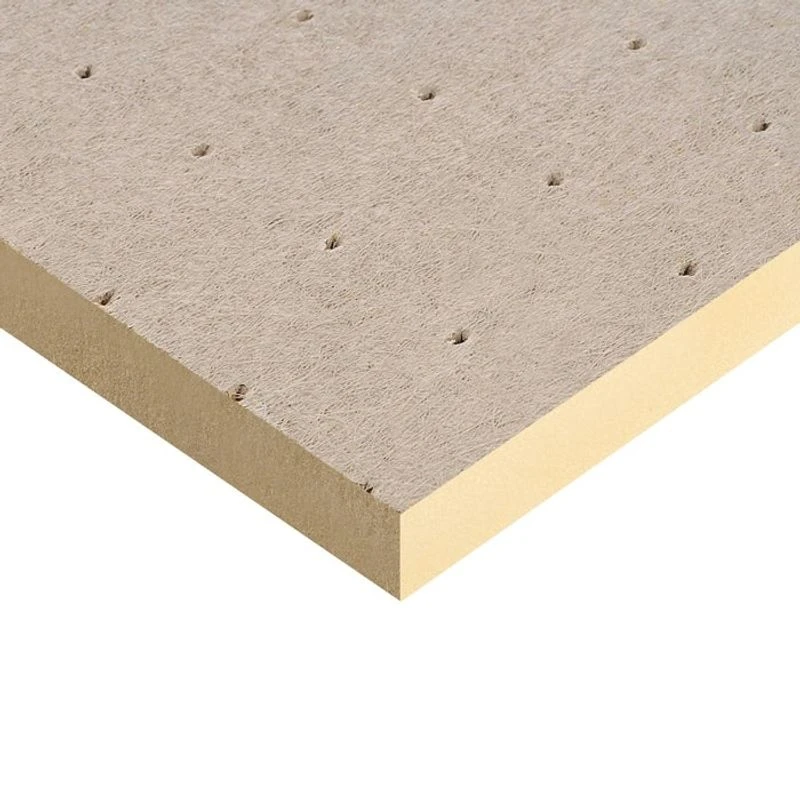

Kingspan Thermaroof TR27 PIR Flat Roof Insulation Board 1200 X 1200 X 140mm – Pack Of 2 Sheets

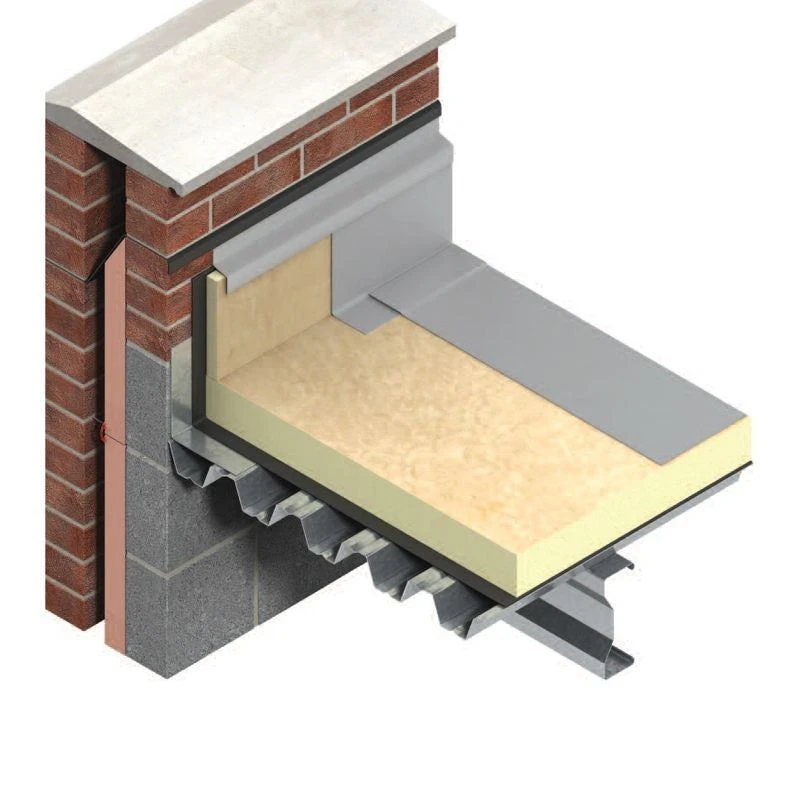

Insulation beneath mechanically fixed / fully adhered single ply waterproofing, and partially bonded built-up felt and mastic asphalt.

Thermaroof TR27 is a high performance, fibre free, rigid thermoset insulation core faced on both sides with a coated glass tissue facing which is used for insulating flat roofs. Fully compatible with single ply non bituminous membranes that are fully bonded with solvent based adhesive systems, most bitumen based and mastic asphalt waterproofing systems and most green roof systems.

Please note: this pack contains 2 x 1200mm x 1200mm sheets.

Properties

Length: 1.2m
Width: 1.2m
Thickness: 140mm
Pack quantity: 2 x sheets
Pack coverage: 2.88m2
Thermal conductivity:
80mm to 119mm – 0.025 W/mK
120mm and above – 0.024 W/mK
Facings: coated glass tissue
Compressive strength: 150kPa at 10% compression

Features

• High performance rigid thermoset insulation thermal conductivities as low as 0.024 W/m.K.
• FM approved for Class 1 steel deck roof assemblies.
• Fully compatible with single ply non bituminous membranes that are fully bonded with solvent based adhesive systems.
• Fully compatible with most bitumen based and mastic asphalt waterproofing systems.
• Compatible with most green roof systems.
• Resistant to the passage of water vapour.
• Easy to handle and install.
• Ideal for new build and refurbishment.
• Non deleterious material.
