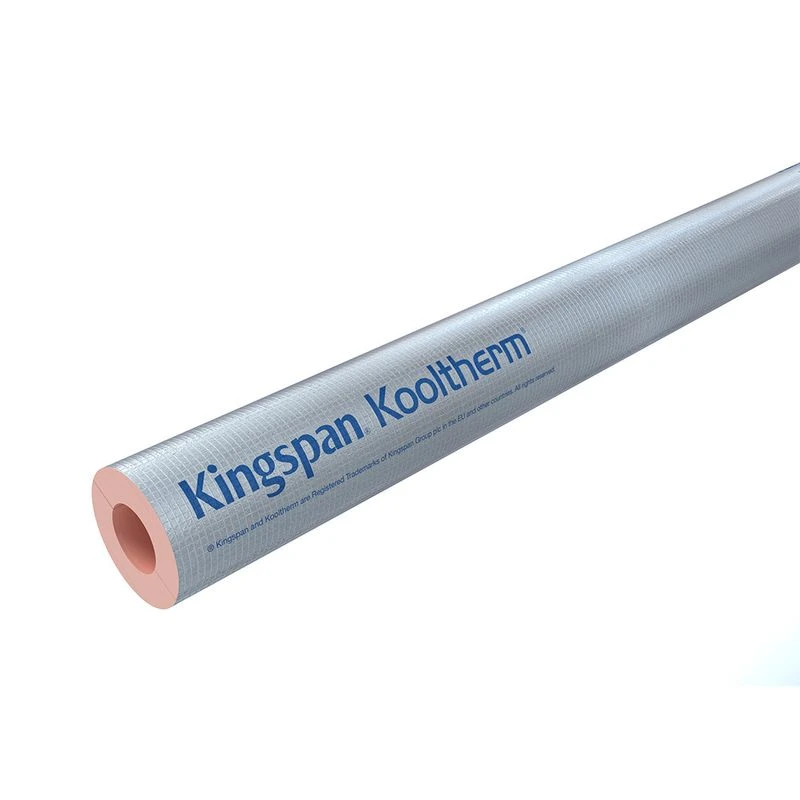

Kooltherm Phenolic Pipe Insulation Lagging – 89mm X 25mm X 1m

As a premium solution for building services and HVAC applications, this Kooltherm Pipe Insulation offers the most efficient and slimmest option on the market. It’s ideal for refurbishment and new build projects in various sectors, including institutional, industrial, commercial, residential and leisure.

Due to its densely cross-linked structure, this phenolic pipe insulation provides impressive fire and smoke performance, making it highly resistant to ignition. Moreover, when exposed to fire, the outer surface creates a sturdy carbonaceous layer that prevents the spread of flames and limits heat generation. This long-term energy-saving solution delivers several benefits to all participants in the building process, including installers, property developers, building owners, specifying engineers, M&E contractors, building services managers and facilities managers.

Features & Benefits: Kooltherm Phenolic Pipe Insulation Lagging – 89mm x 25mm x 1m

• Eco-friendly with zero ODP and low GWP and free from HCFC/CFC
• Ideal for both new build and refurbishment projects
• Rigid non-fibrous thermoset modified resin insulant
• Densely cross-linked structure for excellent fire performance and low smoke emission
• Long-term energy-saving solution
• Premium performance for compressive strength, cost-effectiveness and insulation efficiency
• Thin and effective pipe insulation for HVAC applications and building services
• 25mm wall thickness
• 1m length
• 67mm pipe size

Not only is it environmentally friendly, but this HCFC/CFC-free insulation also ensures superior performance in terms of fire resistance, low smoke emission, compression strength, insulation efficiency and cost-effectiveness. It’s based on award-winning patented technology and employs a non-fibrous, rigid thermoset-modified resin insulant with a blowing agent that has zero Ozone Depletion Potential (ODP) and low Global Warming Potential (GWP). With a thermal conductivity as low as 0.025W/mK at 10°C, it is an excellent choice for energy-efficient construction.

This Kooltherm Pipe Insulation has earned certification from the KIWA N.V. Technical Assessment Body, which assessed and certified its application methods, performance and factory production control. Additionally, it holds KIWA BDA Agrément certification and Local Authority Building Control (LABC) Registered Detail RD certification. Furthermore, its use is backed by an LABC Warranty.

Standards & Certification

• LABC Registered Detail RD: certificate number EWW382
• KIWA BDA Agrément: certificate BAP 15-036/01/C
• FM Approved: Approval Standard Class 4924
• Thermal conductivity: 0.025W/mK at 10°C, mean declared in accordance with EN14314
• Spread of flame: Class 1 to BS 476-7
• European Reaction to Fire: BL,s1,d0 to EN 13501-1
