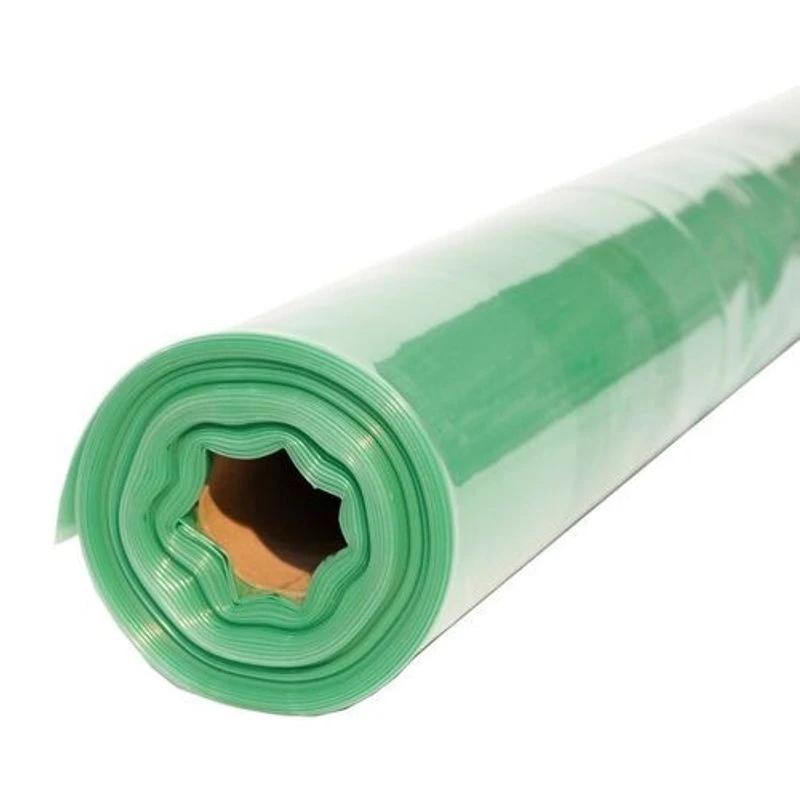

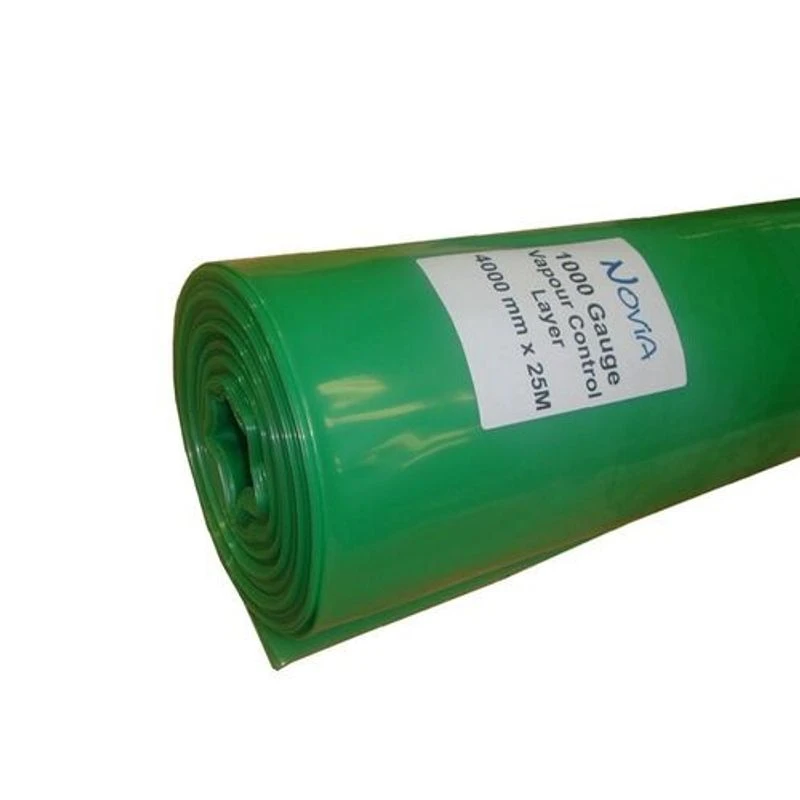

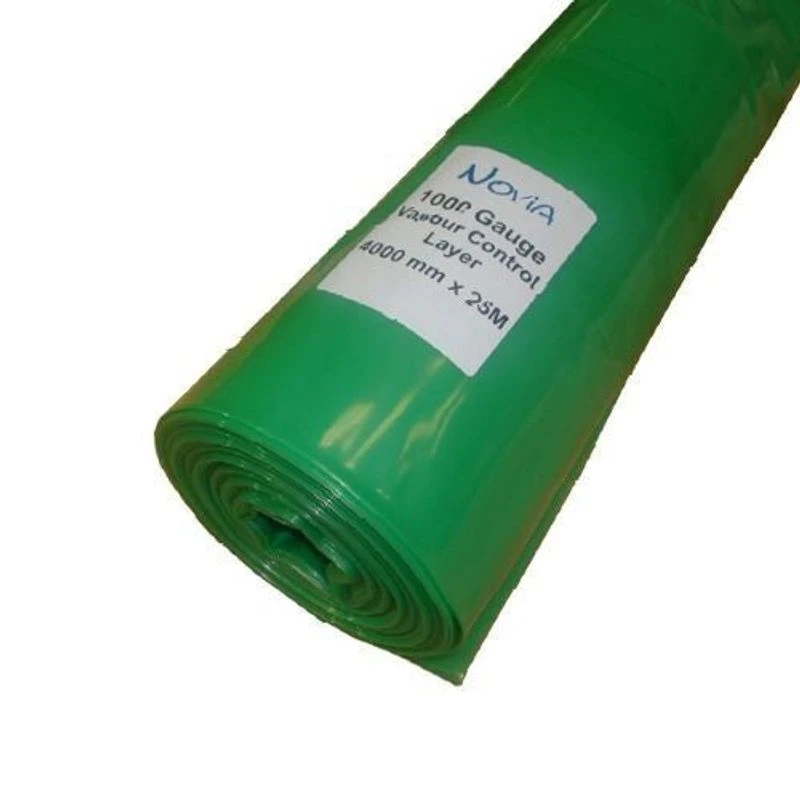

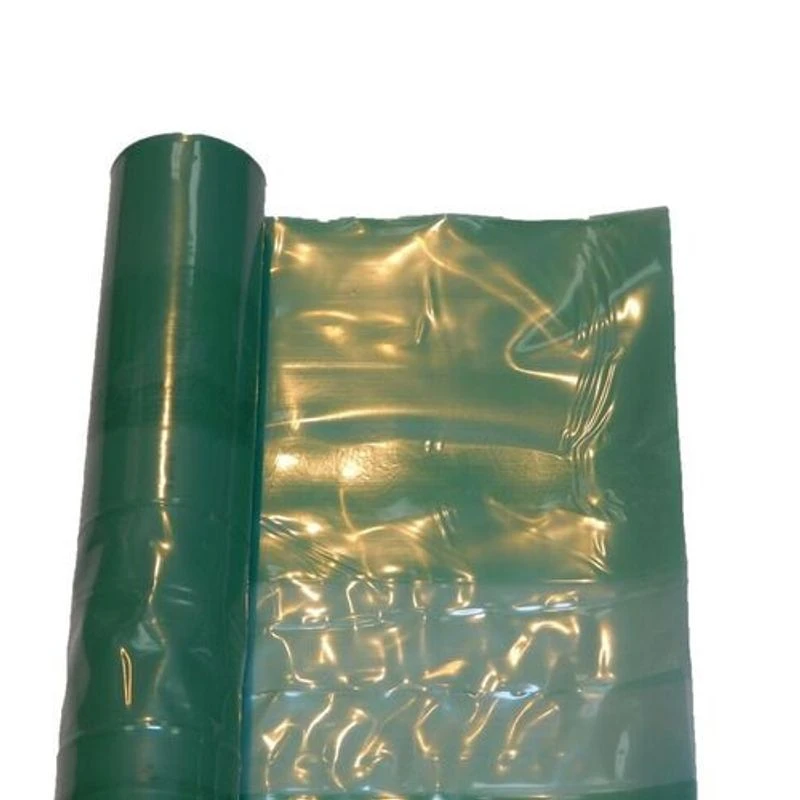

Novia Polythene Vapour Control Layer 1000 Gauge – 4m X 25m Roll

Made from blown polythene material, this Novia 1000 VCL is designed to meet your needs for controlling water vapour and maintaining airtightness within timber frame constructions. Positioned between the 500G and 1200G membranes, this medium specification VCL is fully CPR-compliant and CE-approved as a reliable vapour control layer.

Vapour control layers (VCLs) are essential for regulating the flow of water vapour in insulated buildings. Without these membranes, condensation can wreak havoc on the building structure, leading to long-term damage and increased heating and cooling expenses. Even a mere 3% moisture deposited within the insulation can reduce its performance by up to a third.

Features & Benefits: Novia Polythene Vapour Control Layer 1000 Gauge – 4m x 25m Roll

• Green tint colour
• 1000 gauge/ 250 micron (nominal) material thickness
• Virgin polythene material
• 23kg roll weight
• 100m² roll size
• 25m length x 4m width
• Controls water vapour and acts as an air-leakage barrier
• Prevents condensation and potential building damage
• Reduces heating and cooling costs
• Maintains insulation performance by up to one third

This Novia 1000 VCL not only manages moisture within your structure but also acts as an effective barrier against air leakage, preventing unwanted convection flows. To ensure a complete durable vapour seal, this Novia 1000 VCL should be used in conjunction with Novia’s compatible butyl and foil sealing tapes throughout its lifespan. For a fully airtight and vapour-resistant system, it should be combined with Novia’s breather membranes.

In terms of application, Novia VCL products are easily sealed using Novia’s double-side butyl tapes, typically with a 75mm to 100mm overlap. However, some products may require a larger overlap for optimal performance. To reinforce the seal, a lap seal is applied on top using Novia’s reliable foil tapes. For stronger tapes, choose wider tapes that align with your specific application and budget. To enhance overall airtightness, pre-applying butyl tape to studs or timbers at the fixing points is recommended. This preparation ensures a superior seal when applying staples or any final wall coverings like plasterboard.

Standards & Certification

• Fully CE Approved: to EN 13984: 2013
• Water vapour resistance: at least 500MNs/g to EN 1931
