REDSHIELD Cavity Barrier Double Flange 2.4m – Pack Of 3

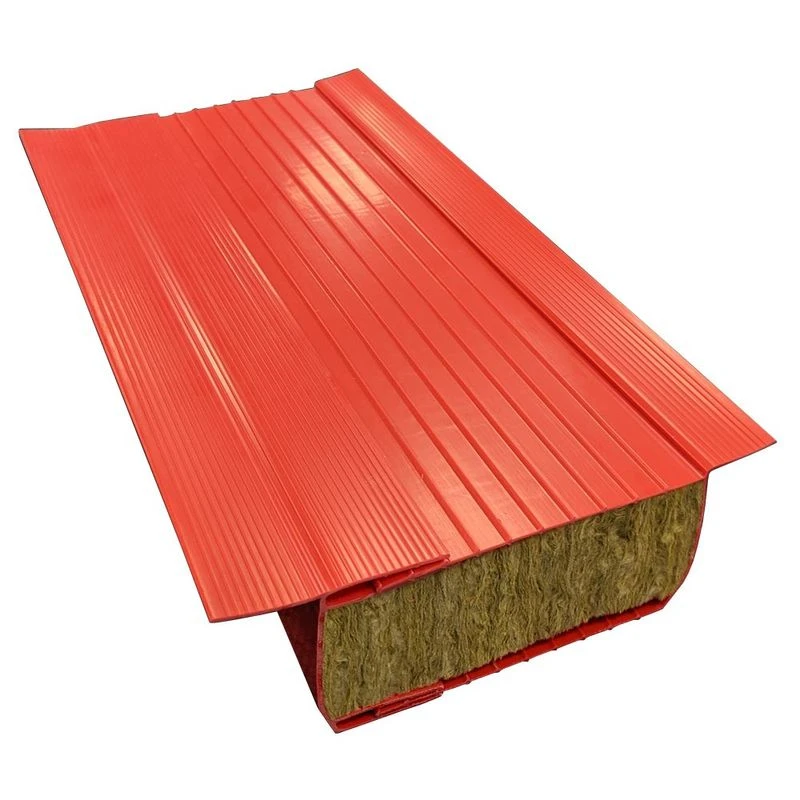

With the needed thermal break and DPC properties of a cavity closer, REDSHIELD® is a standard profile cavity barrier that conforms to the requirements of Building Regulations Part B for fire integrity and insulation, without the need for extra lining materials. The outer casing is made of PVCu and contains a core of compressed mineral fibre wool.

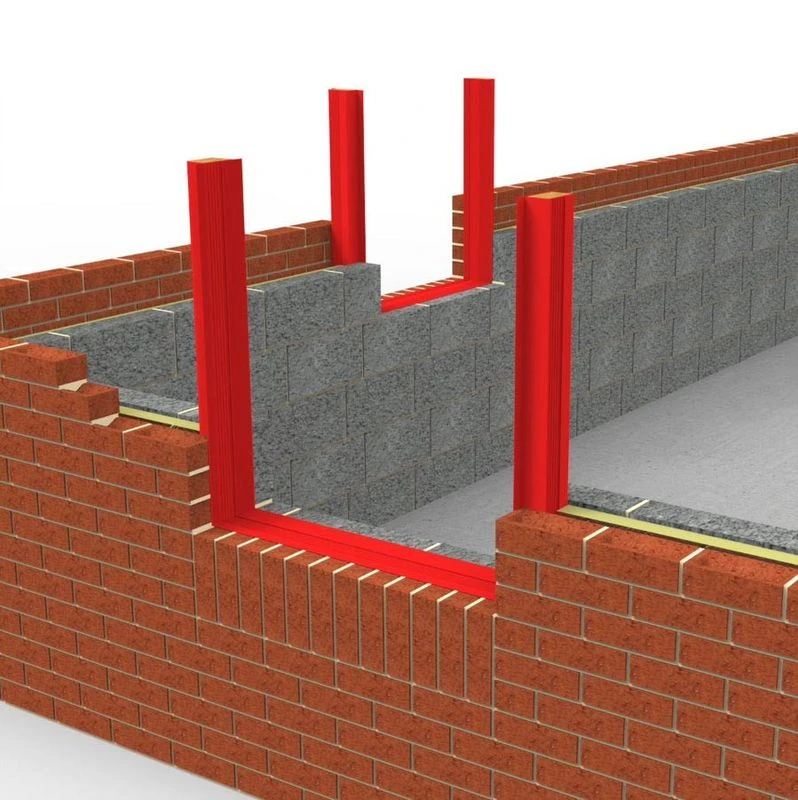

REDSHIELD® can be used in both new build and refurbishment projects, and its unique design allows it to be adapted to different cavity sizes. As a result, it can provide a continuous seal across a range of cavity widths, including those that ‘stray’ in size.

Features & Benefits: REDSHIELD Cavity Barrier Double Flange 2.4m – Pack of 3

• Three lengths per pack
• 2400mm length
• Mineral wool insulation core and red PVCu casing
• True one-product cavity barrier
• No special requirements for fixing
• Acts as a thermal cavity closer, DPC and cavity fire barrier
• Effortless to incorporate into a new build or refurbishment situation
• Designed to last the life of the building
• Closer sizes available to suit a variety of cavity wall widths
• K Value: 0.039 W/mK

The compressed mineral fibre wool insulating core provides 30 minutes of integrity and 15 minutes of insulation, as required by Building Regulation Approved Part B. Additionally, REDSHIELD® solves cold bridging issues by acting as a thermal cavity closer and DPC.

Standards & Certification

• Fire rating: Tested Warringtonfire to BS EN 1366-4: 2006+A1: 2010 independently of other detail

Please note:

• This cavity barrier is non-load bearing and must not be used as replacement for traditional methods of fixing window and doorframes to the masonry.
