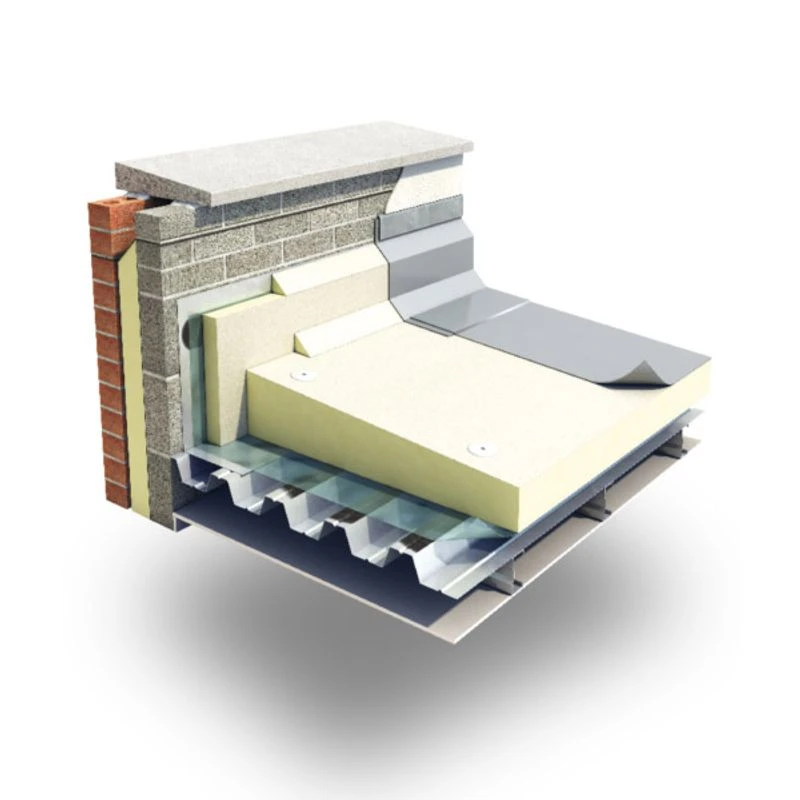

Xtratherm TR/MG Tapered Roof Board 30-50mm – 8.64m2

Crafted without the use of CFCs and HCFCs, Xtratherm TR/MG is a Polyisocyanurate that performs highly with mineral-coated glass facers. It can be employed below single-ply fully adhered roof membranes, single-ply waterproofing systems, and partially bonded built-up felt.

LPC/FM approved and 30mmm to 50mm thick, the insulation board has a layer of bitumen on a 3G-type felt (to BS 747) that is adhered to the deck. It also makes a fantastic solution to Water Ponding with a single system of insulation and drainage.

Features & Benefits: Xtratherm TR/MG Tapered Roof Board 30-50mm – 8.64m2

• 1200mm length x 1200mm width x 30-50mm thickness
• Fall: 1:60
• Appropriate for refurbishment projects and new builds
• Ideal for fully bonding with an approved adhesive
• Zero ODP and Low GWP and non-deleterious materials
• Compressive Strength: >150 kPa @ 10% compression
• Can be used with adhesively bonded single ply roofing membranes laid on boards that are mechanically fixed
• Each board holds a size of 1.44m²
• Six boards in this 8.64m² pack
• Foam core density of 32kg/m³

In this pack of six boards, each board holds a size of 1.44m². Foam cores have a density of 32kg/m³ and thermal conductivity ranges between 0.024 W/mK and 0.027 W/mK.
